Evaporation: 10~75 t/h
Thermal efficiency: ≥86%
Application: chemical, power generation, pharmaceutical, brewing, heating, paper, food, textile, rubber, tobacco, non-ferrous metals, building materials, feed and other industries
Applicable fuel: bituminous coal, lean coal, anthracite, coal gangue, slag, etc

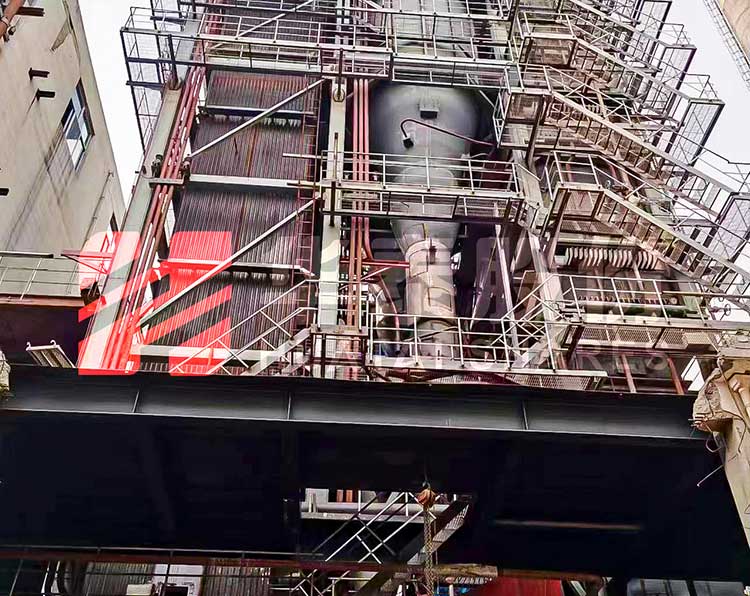

Principle of SHX circulating fluidized bed steam boiler
Huatai SHX series low rate external circulating fluidized bed boiler developed by our company is based on absorbing the advantages of circulating fluidized bed boilers at home and abroad and improving it.
By reducing the cycle rate, optimizing the structure of key parts and other measures, the boiler wear, coke blockage of the return device, high original dust discharge concentration of the boiler, difficult slag discharge and other deficiencies are effectively solved, so that the boiler structure is more reasonable, the performance is better and the operation is safer. Minimize the standby operation and maintenance costs.
| Model number | Rated evaporation capacity | Rated steam pressure | Saturated steam temperature | Thermal efficiency |
| SHX10-1.25/1.6/2.5-A | 10 | 1.25/1.6/2.5 | 194/204/226 | ≥86% |
| SHX15-1.25/1.6/2.5-A | 15 | 1.25/1.6/2.5 | 194/204/226 | ≥86% |
| SHX20-1.25/1.6/2.5-A | 20 | 1.25/1.6/2.5 | 194/204/226 | ≥86% |
| SHX25-1.25/1.6/2.5-A | 25 | 1.25/1.6/2.5 | 194/204/226 | ≥86% |
| SHX35-1.25/1.6/2.5-A | 35 | 1.25/1.6/2.5 | 194/204/226 | ≥86% |
| SHX75-1.25/1.6/2.5-A | 75 | 1.25/1.6/2.5 | 194/204/226 | ≥86% |
| SHX20-1.25/1.6/2.5-A | 20 | 1.6/2.5/3.8 | 300/400/450 | ≥86% |
| SHX25-1.25/1.6/2.5-A | 25 | 1.6/2.5/3.8 | 300/400/450 | ≥86% |
| SHX35-1.25/1.6/2.5-A | 35 | 1.6/2.5/3.8 | 300/400/450 | ≥86% |
| SHX75-1.25/1.6/2.5-A | 75 | 1.6/2.5/3.8 | 300/400/450 | ≥86% |
